STYLO-ME (Self-Locking)

Login to view prices

4 in stock

SKU: 001STYLO-ME Category:

Description

001STYLO-ME

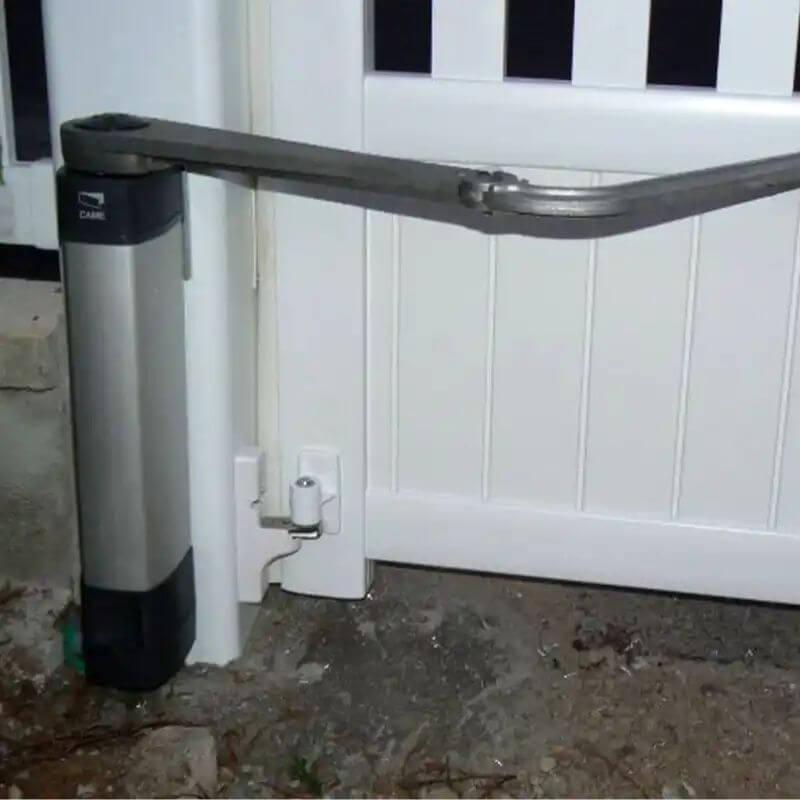

STYLO-ME – Self-Locking Operator with Encoder for Gate Up to 1.8 M – includes key release

The STYLO series offers a modern design with a durable anodised aluminium structure. Equipped with a 24V motor, it allows installation on narrow pillars up to 8cm, making it ideal for compact spaces. STYLO can handle gates up to 200 mm thick and 1.8m long, offering a reliable and elegant solution for pedestrian entrances.

Encoder-Based Movement Control

This technology enables precise monitoring and management of the gate’s movement, enhancing both safety and efficiency. Encoders continuously track the gate’s position and speed, ensuring smooth, accurate operation while helping to prevent damage by detecting obstacles.

Additional items required: ZLX24MA, 001STYLO-BS or 001STYLO-BD

Technical

Power supply to motor (V): 24 DC
Power (W): 48
Current consumption (A): 5 Max.
Duty/cycle (%): HEAVY-DUTY
Maneuvering time at 90° (s): ADJUSTABLE
IP Protection rating: 54
Operating temperature (°C): 20 ÷ +55
Torque (Nm): 100

Operational limits

Max. door length/weight: 1,8 m / 100 kg
  1,2 m / 125 kg
  0,8 m / 150 kg

      Max. leaf opening (°): 120 (with STYLO-BS arm) – 135 (with STYLO-BD arm)
