Description

The Gooseneck 1200M is a simple solution for installations that require a single height access reader post. We have totally redesigned the Gooseneck 1200 to be more installer-friendly for faster installations, along with a larger mounting area to accommodate access readers like the Gallagher T20

This new design, with a removable mounting plate, makes it easier to make cable connections and place any extra wiring inside the post.

Currently, installers have the option of two different styles of mounting plates that make installation faster with the pre-drilled cable entry holes. Customised mounting plates can be supplied on request, subject to minimum manufacturing quantities (MOQs).

Gooseneck sits 1.3m high with the fixed head mounting surface of 138w x 193h and comes galvanised then powder coated in Safety Yellow.

Designed and Made in New Zealand.



Additional information

Reader Post

MRP 1200

Mounting Plate Options

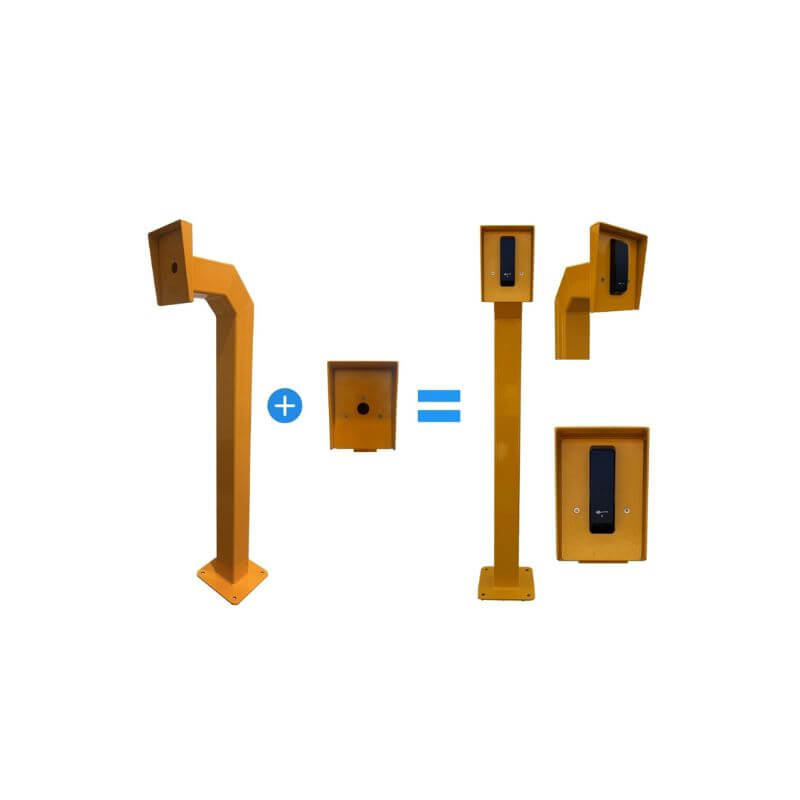

Standard Plate
SKU: MRP-GOOSENECK-1200M-Std_MP
Designed for most access readers, keypads, and small intercoms.

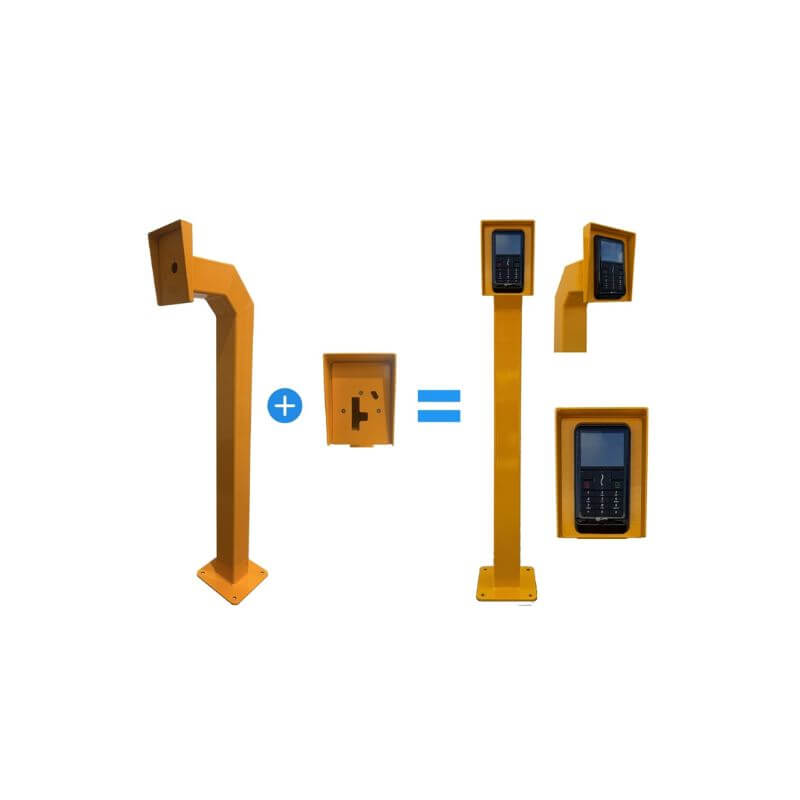

T20 Plate
SKU: MRP-GOOSENECK-1200M-T40MP
Designed for Gallagher’s T20 access terminal



Technical

Recommend Concrete Pad Size (mm): 400L x 400W x 400D
Mounting Plate Size (mm): 138W x 193H
Overall Height (mm): 1300
Eye level height (mm): 1200
Column Size (mm): 100 x 100 x 3
Base Plate Size (mm): 230 x 230 x 8
Bolt Down Hole Size (mm): 12
Steel Protection: Hot Dip Galvanising
Power Coating Colour: Clough Safety Yellow
Expected Life Cycle (Yrs): 20 + (Excluding Powdercoating Finish)
