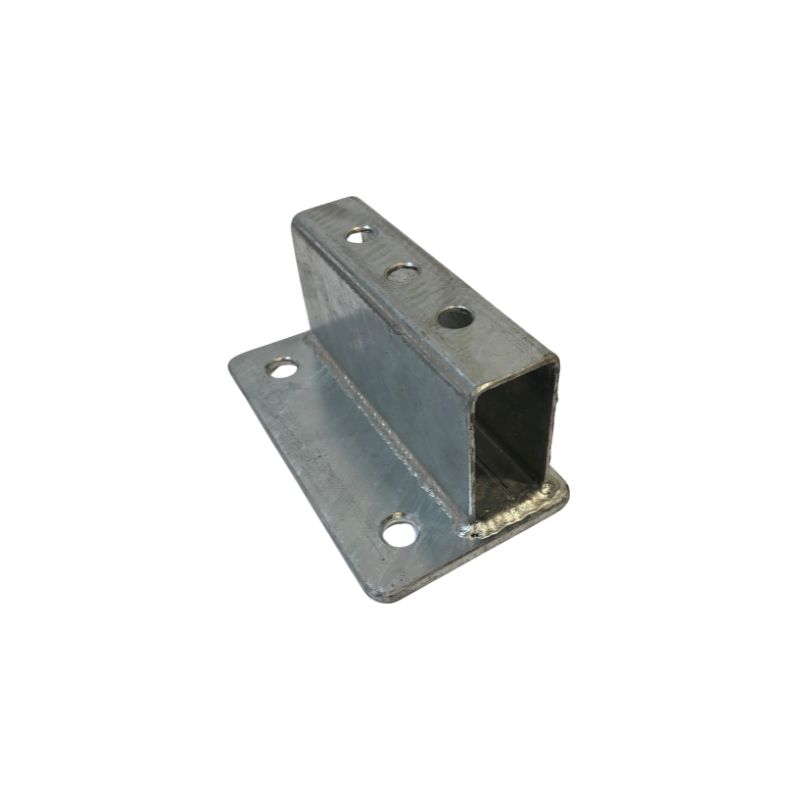

Motor Mount 80

SKU Code: MM80
Height (mm): 80
Length (mm):
Width (mm):
Mounting holes (mm):
Material: Galvanised Steel

Installation is easy; follow the steps below.

1. Attach the operator to the motor mounts (one on each side) using the bolts that come with the operator.
2. Centre and make sure both mounts are the same distance apart (square to the operator’s base).
3. Tighten the motor down to the mounts.
4. Place the operator under the drive rack in the correct position as per the installation manual.
5. Mark the hole locations on the concrete for the screw bolts.
6. Drill only one hole, with the operator moved out of the way.
7. Screw bolt the operator down so it’s over all the hole marks.
8. Pre-drill the other 3 holes 10mm deep using the mounts as a guide.
9. Remove the operator and finish drilling the new holes.
10. Now, evenly bolt the operator into position and adjust as per the user manual.
