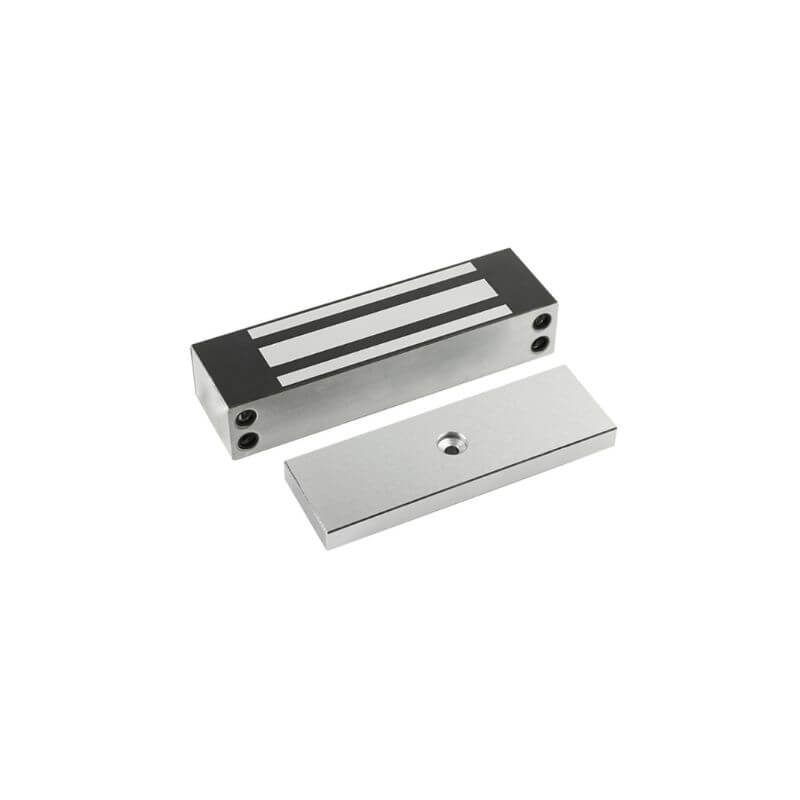

Electromagnetic lock – 680kg 12/24V AC/DC
EM5000 series is a weather-resistant magnetic lock with a built-in varistor (MOV) surge
protection designed to suit external gates and sliding door applications. EM5000G series is a
Fail-Safe lock with holding force up to 680kg, Lock Status Sensor (LSS), and dual operating
voltage of 12/24VDC. The lock model is provided with a dual fixing arrangement.
Compatible Barriers: G6000
Compatible Control Panels: ZLX24MA, ZLX24SA, ZLJ24
Fail Safe: Power to Lock
Dimensions: Lock Body – L 224 x W 63.5 x H 44.5mm Armature Plate – L 190 x W 61 x H 16mm
Operating Voltage: 12 – 24VDC ±10%
Operating Current: 12VDC – 480mA, 24VDC – 240mA
Holding Force: 680Kg
Impact Energy: 200J
Operating Conditions: -10°C ~ 60°C, Humidity 0 ~ 85% (non-condensing)
Protection Rating: IP68
Output Signals: Lock Status Sensor, COM/NO/NC (Max 24VDC; Max 1A)
Fire Resistance: Up to 4 Hours*
*EN 1634-1:2014 / BS EN 1634-1:2014 / BS 476-22:1987
MCBF: Over 1 Million Cycles Usage Lifespan*
Product Codes: EM5000S, ML5000
* MCBF – Mean Cycles Before Failures
