Description
FROG-PM4

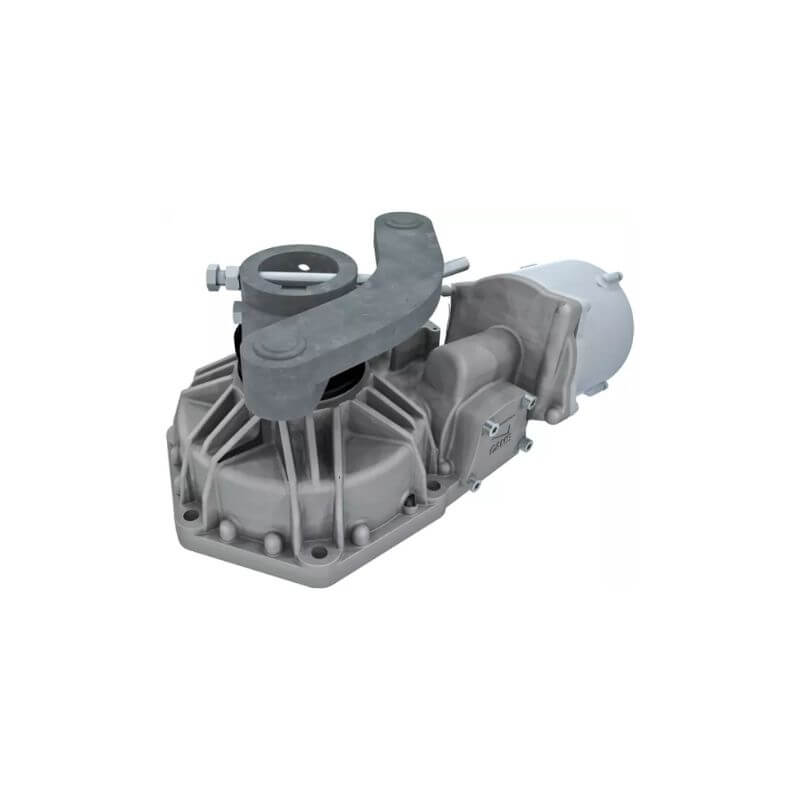

Frog Plus – Irreversible underground 230 V gearmotor with encoder and adjustable leaf-closing for swing gates with up to 5.5 m leaves that weighs up to 700 kg.
Additional items required: 002ZM3EP, 001FROG-PC, 001A4364, 119RIR275
Technical
Power supply to motor (Vac): 230
Motor power supply (Vac): 230
Power (W): 500
Capacitor (μF): 16
Current Draw (A): 2,1
Operating temperature (°C): 20 ÷ +55
Motor thermal protection (°C): 150
Torque (Nm): 800
Maneuvering time at 90° (s): 30
Cycles/Hour: 10
IP Protection rating: 67
Weight (kg): 38
Operational limits
|
Max. length of leaf (m) |
5.5 |
4.5 |
3.5 |
2.5 |
1.5 |
|
Max. weight of leaf (kg) |
700 |
900 |
1100 |
1400 |
1800 |
