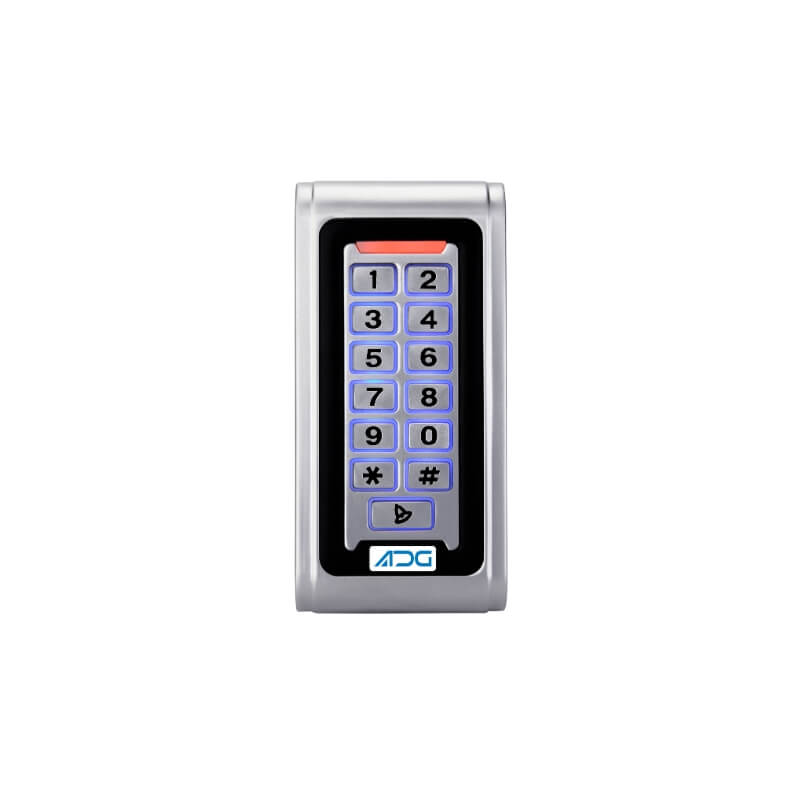

AD2000 Keypad

Login to view prices

70 in stock

SKU: AD2000 Category: Brand:

Description

AD2000

Standalone keypad/access reader

  • Waterproof – IP68
  • Zinc alloy electroplated anti-vandal case
  • Programming through keypad via management coding
  • 12V DC Powered (recommend use of P120 voltage converter )
  • 2000 users, supports cards, tags and pin codes
  • Standalone or connection via Wiegand 26 connection
  • Adjustable door/gate output time, alarm time, and door open time
  • Backlit number illumination



Additional items required: P120 (when connected to CAME equipment)

Technical

Operating Voltage: 12 – 24V DC
User Capacity: 2000
Card/Tag Read Distance: 20- 50 mm
Active Current Draw: <60mA
Standby Current: <30mA
Lock Output Load: Max 3A
Operating Temperature: -45°C ~ 60°C
Protection Rating: IP68
Adjustable Door Relay Time (s): 0 – 99
Adjustable Alarm Time (m): 0 – 3
Interface: Wiegand 26 bit
Dimensions: 58W x 120L x 20D

Downloads

Download AD2000 PDF here

AD2000 Brochure

How to wire to CAME operators

AD2000 Wiring
