Description
CAME S0002P

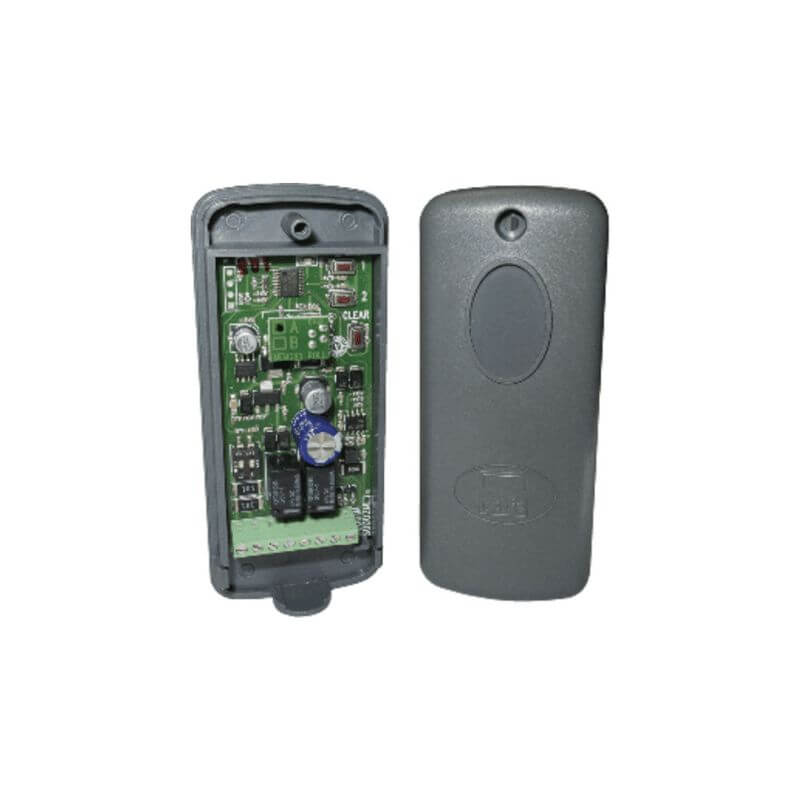

The S0002P is an external two-channel control board for keypads and transponder. It has a sealed plastic housing with IP54 protection class.
It supports the CXN bus and is powered by 12-24V AC / DC.

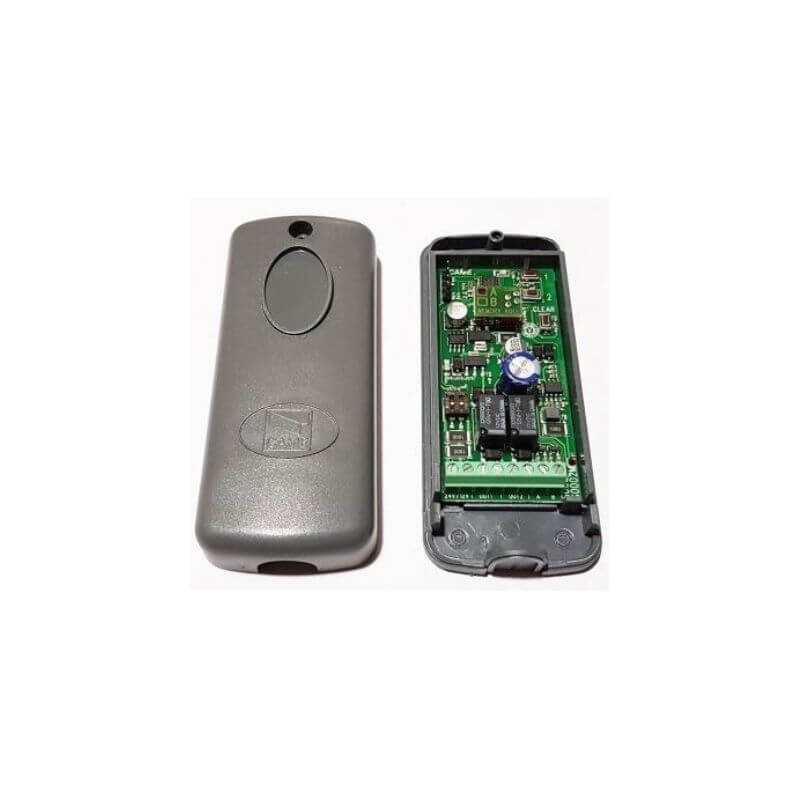

The board includes:
- terminals for outputs of channels OUT1 and OUT2
- power terminals
- terminals for connecting accessories
- warning LED
The distance between the S0002P board and the keyboard selector or transponder must be max. 30m.
TECHNICAL DATA
- Power supply: 12 / 24V AC / DC
- Absorption max. at 24 VAC: 350mA
- Range of the relay max. at 24 VDC: 1A
- Number of relay contacts: 2
- Degree of protection: IP54
