Description

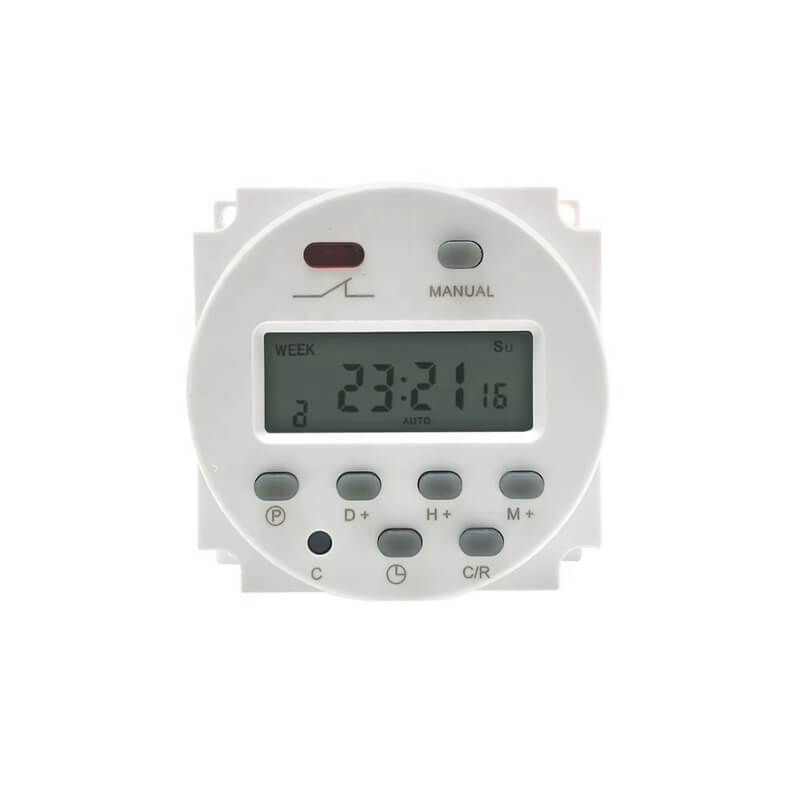

SINO24V-101*
Digital and programmable timer – 24V AC/DC
*Please note: Images are for illustrative purposes only but do accurately represent the product. Product labels may vary slightly.
Technical
Operating Voltage: 12 – 24V AC/DC
Time Range: 1 minute to 168 hours
Contact (Relay) Capacity: 16A (resistive load), 8A (inductive load)
Programmable Settings:16 to 17 ON/OFF (events) per day or week; Minimum Interval: 1 minute
Operating Temperature: -10°C ~ +40°C
Protection Rating: N/A
Power Failure Memory: 60 to 180 days
Internal Backup Battery: 1.2V / 40mA rechargeable battery
Dimensions: Approx. 62 × 62 × 32.5 mm
