Description

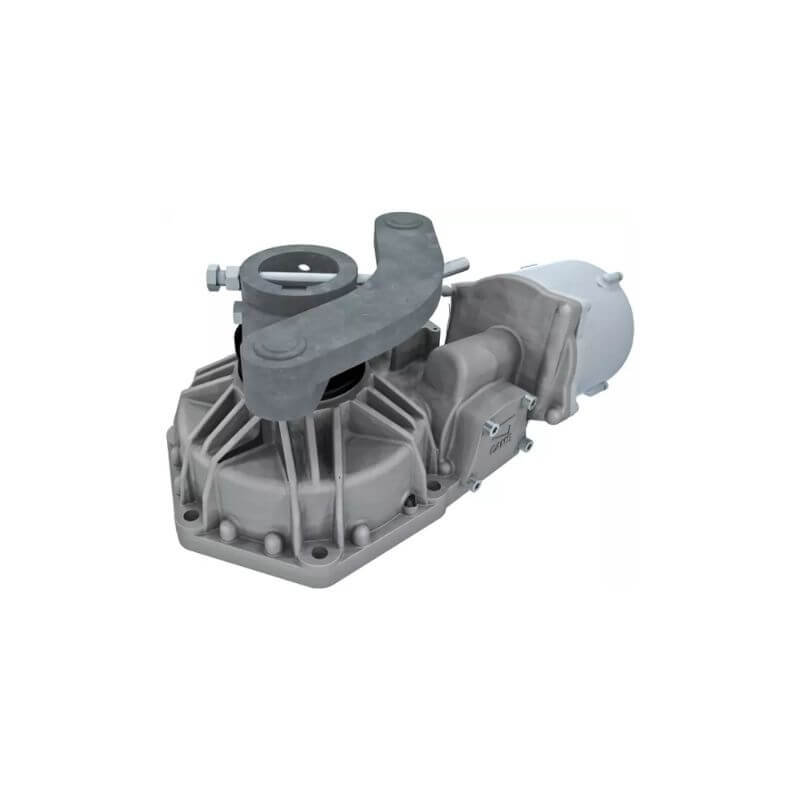

FROG-PM6
Irreversible underground 230 V gearmotor with encoder and adjustable leaf-closing for swing gates with up to 7 m leaves that weighs up to 550 kg.
Additional items required: 002ZM3EP, 001FROG-PC, 001A4364, 119RIR275
Technical
Power supply to motor (Vac): 230
Motor power supply (Vac): 230
Power (W): 500
Capacitor (μF): 16
Current Draw (A): 2,1
Operating temperature (°C): 20 ÷ +55
Motor thermal protection (°C): 150
Torque (Nm): 800
Maneuvering time at 90° (s): 45
Cycles/Hour: 6
IP Protection rating: 67
Weight (kg): 38
Operational limits
|
Max. length of leaf (m) |
7 |
6 |
5 |
4 |
|
Max. weight of leaf (kg) |
550 |
650 |
800 |
1000 |
